Compact x86 Media Server vs Android TV Box with USB Storage

A compact x86 media server is the better long-term fit when your library must serve several devices, handle incompatible formats, support remote playback, or remain easy to expand and recover. An Android TV box with USB storage is usually enough when one television is the main destination and your files already play directly.

The important difference is not simply processor speed. An Android TV box is an endpoint-first appliance, while a compact x86 system can act as a service-first platform for media software, shared storage, automation, and multiple clients.

What This Comparison Is Really Measuring

A direct comparison based only on specifications misses the architectural decision. The first question is whether the device is mainly responsible for playing media on one screen or for coordinating a library across a network.

A local playback setup keeps the storage, player, and television close together. That can reduce setup effort because the box only needs to read files from USB and send a compatible signal to the display.

A server-based setup separates the media library from the playback devices. Phones, tablets, computers, and televisions can then request content from a central location, but the system also inherits responsibilities for networking, user access, updates, and recovery.

This table is a decision model rather than a universal specification sheet. Actual results depend on the device processor, operating system, client compatibility, network path, storage implementation, and media files.

Direct Playback or Server Work: Where Does the Media Live?

Direct playback is the simplest path. When the client supports the file’s video, audio, and container format, the server can send the content with very little processing. The streaming mode definitions distinguish this from container remuxing and full transcoding.

An Android TV box is well matched to this endpoint role when the attached television can decode the files in your collection. The box can browse the local library, use a remote-friendly interface, and avoid introducing a separate always-on server.

A compact x86 server is useful when the television is only one of several clients. In that arrangement, the server stores and organizes the library while each client handles its own display and playback requirements.

The limitation is important: a box that plays a file successfully on the television has not necessarily proven that it can prepare that file for a phone, browser, older television, or remote connection.

When Do Transcoding and Concurrent Streams Change the Answer?

Transcoding begins when a client cannot handle part of the original stream, when the remote connection cannot sustain the source bitrate, or when a selected subtitle requires the video to be processed. Subtitle compatibility can therefore change an apparently direct-play session into a much heavier server task.

That task can involve decoding, scaling, format conversion, HDR tone mapping, subtitle rendering, and encoding. Hardware acceleration can move some of these stages away from the CPU, but the hardware acceleration stages are not identical, and some may still fall back to software processing.

Remote streaming adds a separate network constraint. The server must upload the stream to the client, so the available upload bandwidth can matter more than the download speed advertised for the home connection. The correct limit should be based on an actual test rather than a nominal internet plan; the remote bandwidth limits documentation explains why this distinction matters.

A compact x86 server becomes more valuable when transcoding is routine or several clients may need different outputs at the same time. If nearly every client Direct Plays the original files, extra server processing may not produce a visible benefit.

How Far Can USB Storage Scale Before It Becomes a Workflow Problem?

USB storage is attractive because it is immediate: connect a drive, point the player at the folder, and start watching. For a small local library, that can be all the infrastructure you need.

The friction appears when storage becomes a system rather than an accessory. Multiple drives introduce questions about power, naming, mounting, permissions, file-system support, and how the library should be moved if the original box fails.

Android’s platform rules also show why storage behavior cannot be generalized across every box. The scoped external storage access model changes what applications can see and modify, depending on the Android version, target API, permissions, and implementation.

For a dedicated server platform, check the documented behavior rather than assuming it. The supported disk formats page is an example of the kind of product-specific information that should guide a storage decision.

Backup, Metadata, and Library Recovery

Media files are only one part of a library. Artwork, watch history, user profiles, playlists, naming conventions, and automation settings may also become difficult to rebuild after a drive failure or system reset.

An Android TV box with USB storage can still be part of a safe setup, but the backup process usually needs to be designed separately. Copying the media folder once is not the same as maintaining a repeatable recovery workflow.

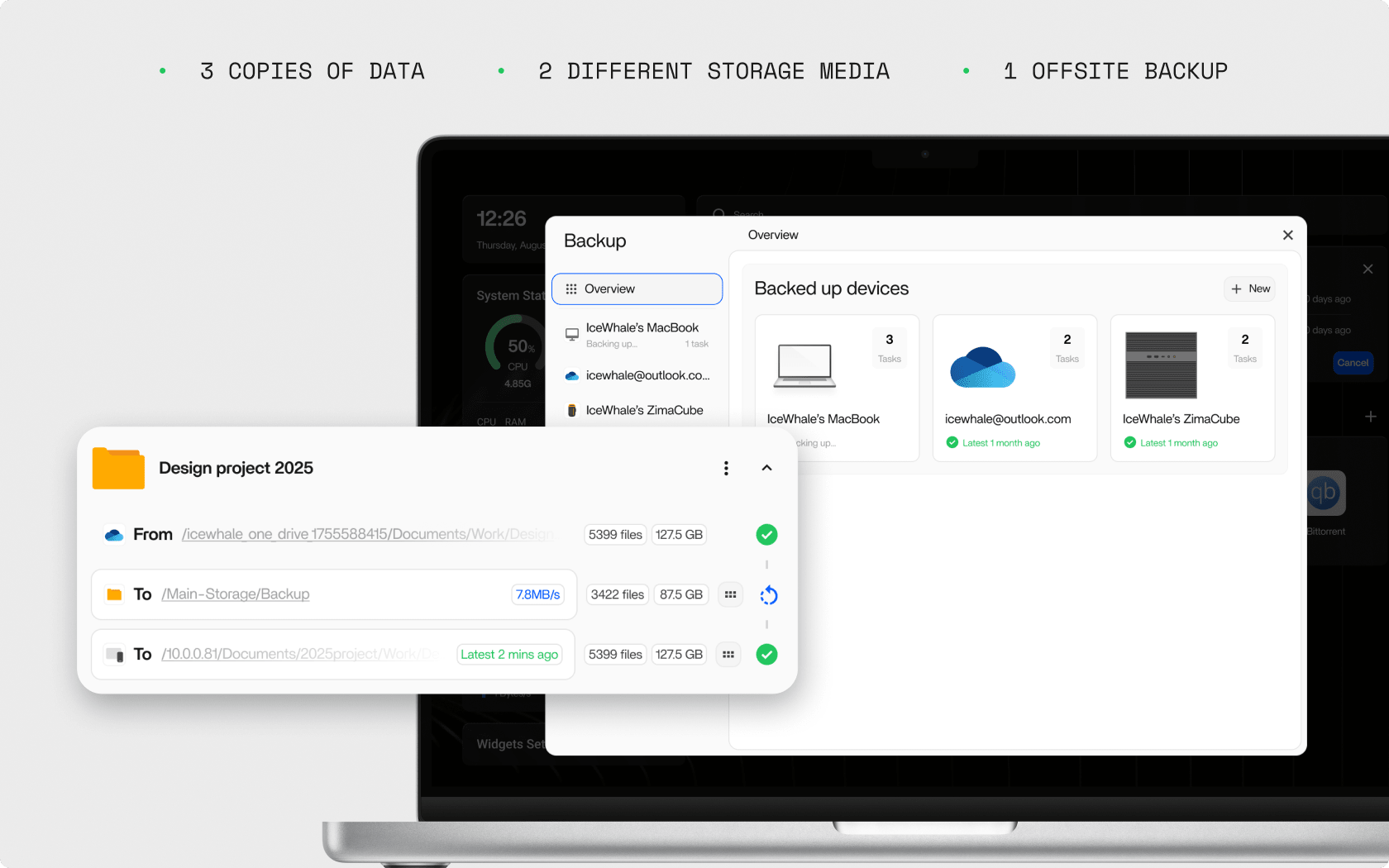

A server-oriented platform can centralize those tasks. For example, a documented 3-2-1 backup workflow can use local, USB, network, or cloud destinations and scheduled tasks.

Do not confuse RAID or drive redundancy with backup. Redundancy may improve availability after a disk failure, while a separate backup is what helps after accidental deletion, corruption, theft, or a failed update.

Power and Maintenance: Which Kind of Simplicity Matters?

The television-box approach minimizes initial friction. It is easy to understand where the files are, which device plays them, and what the remote control does.

The x86 approach moves more work to the beginning. You may need to install an operating system, configure storage paths, set up media software, and decide how remote access should be protected.

That additional setup can later reduce repetitive work if the server handles library scans, user accounts, backups, and client-specific streaming rules. The trade-off is that a server requires updates, monitoring, and a recovery plan.

There is no reliable category-wide power threshold that decides this comparison. Power depends on the exact hardware, storage devices, workload, sleep behavior, and whether the system remains active around the clock.

Which Home Media Workflows Fit Each Option?

One TV and a Stable Local Library

The Android TV box is a sensible fit when one television is the main destination, the files are already compatible, and the library does not change often.

This path is also reasonable when you accept manual copying and backup, do not need remote users, and prefer a short setup over a larger service platform.

Multiple Devices, Remote Access, and a Growing Library

A compact x86 media server makes more sense when several devices need access to one library, when remote playback is part of the plan, or when different clients frequently require different formats and quality levels.

The case becomes stronger when the library includes personal recordings, rare files, or metadata that would be expensive to rebuild. In that situation, centralized management and scheduled recovery tasks are part of the value, not optional extras.

What Should You Check Before Choosing?

Start with the playback path rather than the advertised processor. Check whether your main files Direct Play on the actual clients, whether subtitles or audio tracks trigger conversion, and whether remote viewing is part of the intended use.

• Count the devices that may access the library at the same time.
• Test the server’s real upload speed for remote streaming.
• Check the exact file systems and USB behavior of the chosen platform.
• Decide whether library metadata needs its own backup.
• Estimate how storage will grow over the next upgrade cycle.

If those checks point to one local screen and stable files, the TV box avoids unnecessary infrastructure. If they point to conversion, sharing, expansion, or recovery, the x86 server is solving a real workflow problem.

Frequently Asked Questions

When is an Android TV box with USB storage enough?

It is usually enough for one main television, a modest local library, compatible media files, and little need for remote or multi-user access.

What causes a file to transcode instead of playing directly?

Unsupported video, audio, container, subtitle, resolution, or bandwidth conditions can trigger Direct Stream or full transcoding. The client’s capabilities matter as much as the source file.

Can an Android TV box serve media to other devices?

Some models and applications may provide limited sharing, but that capability is model- and software-dependent. A device designed for local playback should not automatically be treated as a reliable central server.

How does a growing media library change the decision?

Growth increases the importance of storage organization, metadata protection, backup scheduling, and recovery. Those needs can outweigh the TV box’s simpler initial setup.

Who benefits most from a compact x86 media server?

Users with multiple clients, remote playback, recurring transcoding, automated library management, or media that would be difficult to recreate benefit most from the server architecture.

Final Takeaway

Choose the Android TV box with USB storage when your goal is simple, local, direct playback on one screen. Choose the compact x86 media server when the library must become a shared service that converts media, serves several clients, grows over time, and remains recoverable.
