Why Does a High File Count Exhaust Home NAS Inodes Before Disk Space?

A high file count can exhaust a home NAS inode supply before it exhausts data blocks. The result looks contradictory: a capacity screen may show gigabytes or terabytes free, yet an upload, backup, container, or indexing job can no longer create another file.

This is a filesystem limit, not a universal property of every NAS. The classic failure is easiest to see on ext4 and similar filesystems with a defined inode population, while XFS and Btrfs allocate metadata differently. The filesystem type therefore determines whether “free inodes” is the right metric or only one part of the diagnosis.

A Home NAS Can Exhaust Object Slots Before Data Blocks

The direct cause is that file data and file identity consume different resources. In ext4, an inode records metadata such as timestamps, ownership, block mappings, and extended attributes, while a directory entry associates a name with an inode. The Linux kernel's ext4 inode documentation describes its inode table as a linear array distributed across block groups.

Every new regular file normally needs an inode, but byte size does not determine how many inodes it needs. A 100 GB video can occupy one inode, while one million tiny cache files can require roughly one million inodes. Directories and symbolic links are filesystem objects too, whereas multiple hard links to the same file share one inode.

Free blocks can therefore remain available after the last free inode has been assigned. At that point, the NAS still has room for more file content in principle, but it lacks the metadata identity required to create another object. Capacity and object count are independent enough that both must be observed.

Why Small Files Drive Inode Use Faster Than Capacity

Small files create high object density: many identities are required for relatively little payload. A zero-byte file still needs metadata, and a directory tree adds its own directory inodes even before the files inside it are counted. This is why a workload can consume file slots much faster than it consumes the advertised terabytes of a NAS.

On ext4, the creation tool can calculate the inode population from a bytes-per-inode ratio or accept an explicit inode count. The mke2fs inode allocation options state that a larger bytes-per-inode ratio creates fewer inodes and that the ratio cannot be changed after filesystem creation, although resizing maintains the configured ratio by adding inodes with new space.

A simple planning model is approximate inode population = filesystem size ÷ bytes-per-inode ratio. With a hypothetical 16 KiB ratio, 1 TiB corresponds to about 67 million inode slots before formatting overhead and filesystem limits are considered. This is an illustration, not a universal NAS default: format profiles and filesystem implementations choose different policies.

What Changes When the Last Free Inode Is Allocated

In the classic exhaustion case, operations that need a new inode begin to fail. New uploads, directories, temporary files, extracted archive members, and application state files may all be rejected even though existing files can still be read. An existing file may also be able to grow if free data blocks remain because it already owns an inode.

Applications often translate the allocation failure into a generic “No space left on device” message. That message identifies a failed resource allocation, but it does not tell the user whether the missing resource was data blocks, inodes, a quota allowance, or filesystem-specific metadata space. The visible error must be paired with filesystem counters.

Which Home NAS Workloads Create Extreme File Counts

The risky workload is not simply “large data.” It is any workload that materializes many independent filesystem objects, especially when cleanup or retention allows those objects to accumulate for months.

Container Layers, Logs, and Package Trees

Container images, extracted software packages, dependency trees, rotating logs, and application caches can place large numbers of small objects beneath one NAS-hosted service. The container image may look modest in gigabytes while its unpacked layers and writable state consume far more object identities than a media file of the same size.

Photo Thumbnails and Search Indexes

A photo manager can generate thumbnails, previews, sidecars, face crops, or index fragments for each source asset. Some applications consolidate these records in databases, while others store many of them as ordinary files, so the inode effect depends on the application's storage design rather than the photo library size alone.

Sync Histories, Backup Trees, and Mail Stores

Versioning systems that materialize revisions as files, backup trees containing many source objects, and one-message-per-file mail stores can all produce high file counts. Copy-on-write snapshots and deduplicated repositories may represent versions differently, so a snapshot count should not be treated as a direct inode count without checking the implementation.

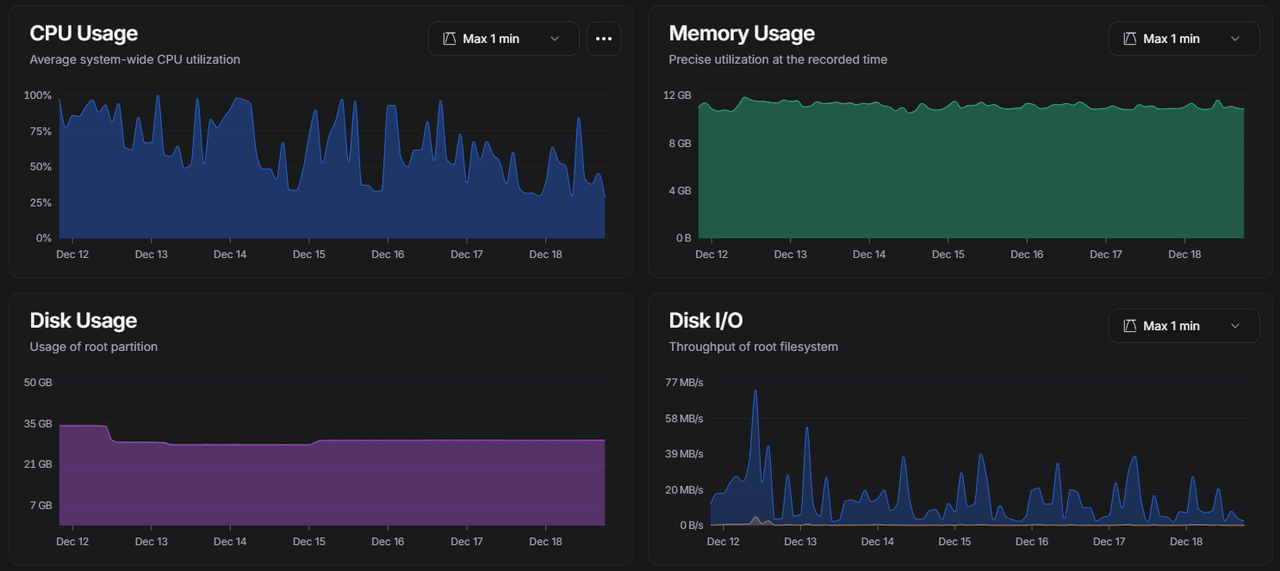

Why a Capacity Dashboard Can Miss Inode Pressure

Many dashboards emphasize bytes: total capacity, used blocks, and free blocks. The standard filesystem statistics interface keeps object counters separately as total, free, and available file serial numbers; on Linux these correspond to fields such as f_files and f_ffree in statvfs filesystem statistics. A UI that omits those fields can look healthy during classic inode exhaustion.

On a Linux-based NAS with shell access, block use and inode use can be compared for the same mounted path:

df -h /path/on/nas
df -i /path/on/nas

The GNU df manual defines -i as inode usage instead of block usage and exposes total, used, available, and percentage fields. Free blocks beside zero available inodes strongly support classic inode exhaustion; headroom in both columns points toward a different limit.

Fixed and Dynamic Inode Filesystems Fail Differently

“The NAS ran out of inodes” is accurate only when the filesystem's allocation model and reported counters support it. The same no-space message can come from a different metadata boundary on another filesystem.

The XFS inode-space policy can cap the filesystem percentage allocated to inodes, while the official Btrfs filesystem reporting separates Data, System, Metadata, and GlobalReserve. Those models can produce metadata-related limits, but they should not be explained as though every NAS had the same fixed inode table.

The generic statistics interface also warns that not every returned field is meaningful on every filesystem. Identify the mounted filesystem first, then interpret df -i through that implementation instead of treating one command as universal proof.

What Inode Headroom Means for NAS Capacity Planning

A capacity forecast for a high-object workload needs both expected bytes and expected object count. Media archives are usually byte-dense, while dependency trees, thumbnails, mail stores, and materialized backup trees can be object-dense. Two workloads with the same logical size can therefore need very different metadata headroom.

For an ext4 volume, the bytes-per-inode ratio is a format-time design choice rather than a normal live tuning knob. Resizing can add inodes in line with the established ratio, but it does not retroactively choose a denser profile. Reformatting solely to change that ratio is a migration decision with backup and restore consequences, not a casual performance tweak.

Once inode pressure has been ruled out, ordinary block-capacity questions remain separate; a home NAS storage capacity plan can supplement that decision, but free-terabyte guidance does not replace an inode or metadata count.

Why Deleting One Large File May Not Recover Enough Inodes

Deleting one large movie can release many data blocks but normally releases only one inode. Removing a directory tree containing hundreds of thousands of expendable cache objects can release many inodes even when the recovered byte capacity is comparatively small. Cleanup must match the resource that is exhausted.

An unlinked object is not always reclaimed immediately. The Linux unlink behavior keeps a file in existence when a process still has its last link open, and releases it after the last referring file descriptor closes. Inode recovery may therefore lag behind pathname deletion for active logs or service files.

FAQ

Does every file use exactly one inode?

A regular file normally has one inode, and directories and symbolic links also have their own filesystem identities. Multiple hard-link names can point to the same inode, while filesystem-specific features may store additional metadata in separate objects, so pathname count and inode count are related but not always identical.

Can an SSD cache or faster network prevent inode exhaustion?

No. Faster media and networking can reduce latency or increase throughput, but they do not create additional inode slots in a fixed inode population. They can make a high-file-count workload complete faster and reach the same metadata limit sooner.

Does df -i work on every home NAS filesystem?

It reports the inode-style counters supplied through the mounted filesystem interface, but those counters may not carry the same meaning on every filesystem. Use it directly for ext4-style diagnosis and pair it with filesystem-specific metadata tools for XFS, Btrfs, ZFS, or an appliance that abstracts the underlying volume.

Can expanding an ext4 filesystem add more inodes?

Yes, ext4 resizing can add inodes as new space is incorporated while maintaining the existing bytes-per-inode ratio. That differs from changing the ratio on the existing filesystem, which the creation-tool documentation says is not supported after formatting.

Is every “No space left on device” error caused by inodes?

No. Full data blocks, quotas, reserved space, Btrfs metadata allocation, temporary-space limits, and some non-storage resource limits can produce similar messages. Inode exhaustion is supported when the failure involves creating filesystem objects and the relevant inode counter has no available entries.

File Count Is a Capacity Dimension of Its Own

A home NAS can retain free disk space and still stop accepting new objects because bytes and filesystem metadata are separate capacity dimensions. Treat high file count as a workload property, confirm the actual filesystem, and compare block headroom with inode or metadata headroom before concluding that the disks are full.
