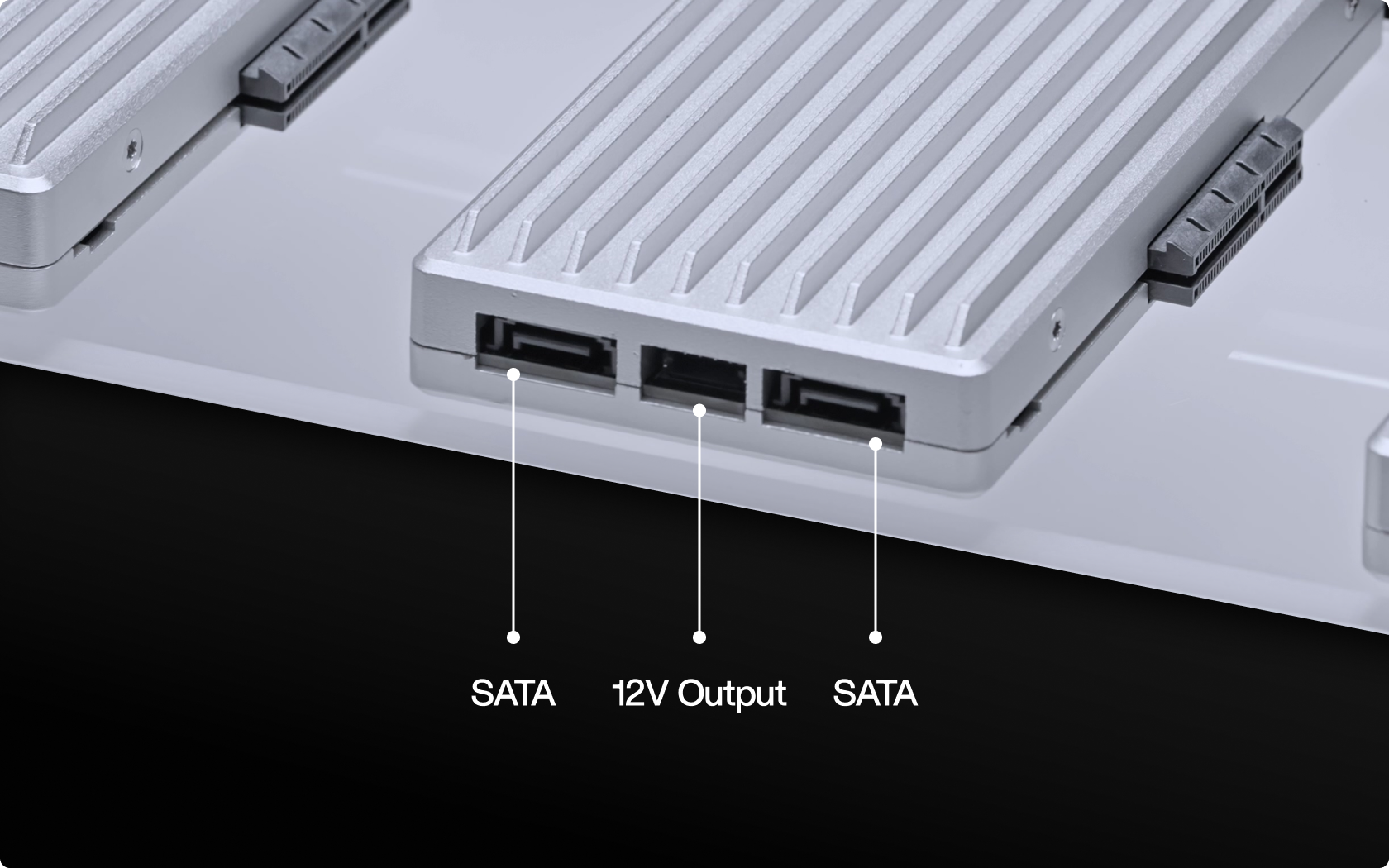

How to Distinguish a Bad SATA Cable From a Failing NAS Drive

A bad SATA cable produces transport errors, while a failing drive produces media or device errors. The reliable test is to track which error type rises and where it follows.

Do not diagnose from a single SMART status or one disconnect. Record the disk serial, current counters, kernel messages, bay, cable, and controller port, then change one path component at a time. The pattern after each controlled change is more useful than the original error count.

Capture a Baseline Before Reseating Anything

Record the affected drive’s serial number, model, bay, controller port, SMART attributes, self-test log, error log, and recent system messages before changing the cable. A reseat can stop the symptom while erasing the relationship between the drive and the path.

Device names such as /dev/sdX can change across boots or cable moves, so the serial number is the stable identity. Timestamp the baseline and note raw counter values because several SMART counters are cumulative and do not return to zero after a cable is replaced.

Pause heavy writes if the array is degraded or errors are increasing. Preserve the evidence first, then make one controlled change; otherwise a cable, bay, power connector, and drive swap performed together will produce no reliable diagnosis.

Separate Transport Errors From Media Errors

Transport errors occur while commands or data cross the SATA path, whereas media errors occur when the drive cannot reliably read or write sectors. The two fault classes can cause similar application symptoms but point to different hardware.

The Linux ATA error model distinguishes an ATA bus error from a media error: CRC and transmission failures belong to the path, while an uncorrectable read reported after retries belongs to the device media. Timeouts can be ambiguous, so they need supporting counters and controlled swaps.

Classify each log entry before acting. Rising CRC or link-reset evidence directs attention to cable, connector, backplane, power stability, or controller path; unreadable sectors and failed self-tests keep the drive itself under suspicion.

Watch Whether CRC and Link Counters Keep Rising

A nonzero CRC count shows that interface errors occurred, but the historical total alone does not prove the cable is currently bad. The key signal is whether the raw count increases during a known test window.

ICRC records an interface CRC error. Because this counter is stored by the drive, it may remain visible after the original cable or host has been replaced, so compare before-and-after values rather than treating any past count as an active fault.

Run a controlled read workload after reseating or replacing the data cable and record the new count. If CRC or link-reset events stop while media indicators remain stable, the path was the stronger cause; if the count continues rising, continue isolating the bay, port, and power connection.

Use Self-Tests to Look for Drive-Side Failure

A drive remains suspect when it reports unreadable sectors, pending sectors, reallocated sectors, failed commands unrelated to CRC, or a self-test that stops at a repeatable location. These signals concern the device’s ability to access its media.

SMART self-tests and error logs are useful because they preserve device-side evidence without relying only on the RAID layer. The SMART self-test log should be interpreted together with raw attributes and system logs, not reduced to the single overall PASSED line.

Do not run an extended test that will overload a severely degraded array or a drive already returning repeated read errors. When data is at risk, prioritize backup or imaging, then test the isolated drive under a controlled workload.

Swap One Path Component at a Time

The clearest discriminator is whether the fault follows the physical drive or stays with the SATA path. Change only one component per test: first the data cable, then the bay or backplane path, and finally the controller port if the platform allows it safely.

Keep the same disk serial and workload while comparing new errors. A transport counter that rises only in one bay or with one cable points away from the disk, while media errors and failed self-tests that follow the serial across clean paths point back to the drive.

Never shuffle active RAID members without recording serial-to-slot mapping and confirming that the storage stack identifies members by metadata rather than slot order. If the system cannot support controlled movement, replace the cable first and use logs to narrow the remaining path.

Interpret Timeouts and Resets as Supporting Evidence

Command timeouts, SATA link resets, and devices briefly disappearing can result from a weak cable, unstable power, controller issue, or a drive that stops responding. They are important signals, but they are not self-identifying causes.

The ATA recovery path may reset a link after transmission failures or unknown command states. Repeated resets combined with rising CRC errors strengthen the path hypothesis; repeated uncorrectable sectors or self-test failures strengthen the media hypothesis.

Correlate each event by timestamp with RAID drops, application I/O errors, and SMART changes. A single reset after maintenance is less persuasive than a recurring pattern that returns under the same cable, bay, or drive serial.

Replace the Component the Evidence Follows

Replace the cable or repair the path when new CRC and link errors remain tied to one connection and the drive passes controlled media checks elsewhere. Replace or retire the drive when device-side errors follow its serial across known-good paths.

Ambiguous cases should not be forced into a binary answer. A failing drive can coexist with a marginal cable, and a stable SMART self-test does not erase repeated transport faults that can still drop a RAID member.

After the repair, establish a fresh baseline and verify that counters stop rising through normal workload, a scrub or consistency check, and a period of monitoring. Escalate or image the disk when errors continue, data is unreadable, or the array has no remaining redundancy.
