2-Bay vs 4-Bay NAS: Which Fits Your Media Library?

A 2-bay NAS can be enough for a modest media library, but many people outgrow it faster than expected once movies, 4K videos, phone photos, family backups, and Plex metadata all grow together.

A 4-bay NAS is not automatically required, but it gives more room for expansion, RAID flexibility, and long-term protected capacity. The right choice depends less on today’s folder size and more on how fast your media library will grow.

Start With Future Growth, Not Today’s Folder Size

The first question is not “2-bay or 4-bay?” The first question is what your media library will look like two or three years from now.

A small library of music, 1080p movies, and casual family photos may stay manageable for a long time. A library built around 4K movies, Blu-ray rips, phone videos, RAW photos, downloads, backups, and multiple users can grow much faster than expected.

If the NAS is only for a few movies and one TV, 2 bays may be fine. If the NAS is becoming the home media hub, photo archive, backup target, and app server, 4 bays become easier to justify.

A 2-Bay NAS Is Simple, but Capacity Gets Tight Fast

A 2-bay NAS is attractive because it is smaller, cheaper, easier to understand, and usually lower power. For a simple media setup, that can be exactly the right trade-off.

The limit appears when you want both usable space and drive redundancy. In a mirrored setup, two drives protect against one drive failure, but usable capacity is roughly the size of one drive. If you skip redundancy, you get more space but less protection.

The bigger issue is expansion. When a 2-bay mirrored NAS fills up, upgrading often means replacing both drives with larger ones. That can leave two usable old drives sitting outside the system and makes the upgrade feel more expensive than expected.

A 4-Bay NAS Can Start Small and Grow Later

A 4-bay NAS does not have to be filled on day one. Many users start with two drives, then add more capacity when the library grows.

That is the practical advantage: you can use a 4-bay NAS like a 2-bay NAS at first, but you cannot turn a 2-bay NAS into a 4-bay NAS later. Expansion still needs planning, but the enclosure gives you more options before you have to replace the whole system.

A TrueNAS community discussion about initial pool structure and expansion shows why this matters: starting with two drives in a 4-bay box creates future choices, but the exact layout affects how easy or risky expansion becomes.

RAID Options Change the Real Capacity

Raw capacity is not the number that matters. A NAS with four 12TB drives does not simply give you 48TB of safe usable space. The real number depends on the RAID or storage layout.

The ZimaSpace RAID calculator for NAS storage capacity is useful because it compares RAID levels and shows how redundancy reduces usable space. It also explains the core planning rule: RAID 1 is common for 2-bay mirroring, RAID 5 is popular for 3+ drives, and RAID 10 is often chosen when speed and rebuild behavior matter more than maximum capacity.

These numbers are for planning. Real usable capacity can vary because of decimal vs binary reporting, file system overhead, reserved space, and system layout. The important point is that a 4-bay NAS changes how much protected capacity you can build.

Media Libraries Grow Differently From Normal Files

Media storage is not like storing office documents. A few years of 4K video, phone footage, Blu-ray rips, RAW photos, and exported projects can consume more space than users expect.

A guide to building a 4K home media server is relevant here because 4K media changes both storage planning and playback expectations. The larger the files and the more devices involved, the more important long-term capacity becomes.

If you expect to stay under a modest amount of actual data and already have a separate backup plan, 2 bays can work. If you are already thinking in tens of terabytes, 4 bays are usually the safer starting point.

Streaming Performance Is Not Only About Bay Count

More bays can help storage capacity and sometimes disk performance, but bay count does not automatically make Plex or Jellyfin faster. Streaming speed also depends on the network, client device, file format, bitrate, CPU, GPU, and whether the file can Direct Play.

Plex’s official guide to using Plex Media Server on a NAS explains that playback may require transcoding when the client cannot play the file directly, subtitles need to be burned in, or remote streaming needs lower quality. It also notes that many home NAS CPUs are not especially powerful for transcoding.

For one TV playing compatible files locally, a 2-bay NAS can be enough. For multiple users, 4K libraries, remote access, Docker apps, and heavy metadata work, the overall platform matters more.

Photos and Videos Behave Differently

Movie files are usually large sequential files. Photo libraries are often thousands of small and medium files plus thumbnails, metadata, previews, and app databases.

That difference matters because a NAS can feel fast for one large movie file but slower when browsing a folder full of photos. More bays may help capacity, but photo-app responsiveness may also need SSD app storage, better indexing, stronger CPU, or a cleaner database layout.

If your “media library” really means family photos, phone videos, scans, and backups, capacity is only part of the choice. Organization, backup, and recovery matter just as much.

RAID Helps Availability, but It Is Not Backup

A mirrored 2-bay NAS and a parity-based 4-bay NAS can help when a drive fails. That is useful, but it is not the same as backup.

The ZimaSpace guide to NAS backup, RAID, and 3-2-1 strategy explains the difference: RAID helps with drive failure and availability, but it does not protect against accidental deletion, corruption, malware, theft, fire, or other full-device loss.

If the media library includes family videos, photos, or files you cannot replace, plan backup separately from RAID. A bigger NAS is not a substitute for a real backup strategy.

Expansion Is Where 2-Bay Owners Often Feel the Limit

Expansion is the reason many users regret starting too small. A 2-bay NAS can be comfortable at first, then suddenly feel trapped when both bays are full and the only clean upgrade path is replacing existing drives.

A 4-bay NAS gives more planning room, but it still requires choices. Some layouts are easier to grow than others. Some changes require copying data elsewhere, rebuilding, or accepting a migration risk. The best time to think about this is before the media library becomes too large to move easily.

If you already know the library will grow, 4 bays are usually the safer long-term choice.

Cost Now vs Cost Later Is the Real Trade-Off

A 2-bay NAS usually wins on upfront cost. A 4-bay NAS often wins if the library grows enough that you would otherwise replace the enclosure, buy larger drives sooner, or split media across multiple boxes.

The cheaper choice is not always the lower-cost choice. If a 2-bay NAS fits for years, it is efficient. If it forces a second purchase soon, the 4-bay option may have been cheaper in the long run.

Noise, Power, and Space Still Matter

A 4-bay NAS has practical home trade-offs. More drives usually mean more vibration, more heat, more power draw, and more fan work. That may matter if the NAS sits in a bedroom, living room, or small apartment.

If quiet, compact, low-power storage is the top priority, a 2-bay system still has a real place. If capacity and growth matter more, the 4-bay trade-off is easier to accept.

When a 2-Bay NAS Is the Right Choice

Choose a 2-bay NAS if your media library is modest, your budget is tighter, and your storage needs are stable. It is also a good fit when you already have a separate backup plan and do not expect the NAS to become a full home server.

A ZimaBoard 2 personal server can fit lightweight media storage, personal file sharing, backups, and beginner NAS workflows where simplicity matters more than maximum drive expansion.

When a 4-Bay NAS Is the Better Choice

Choose a 4-bay NAS if the media library is growing, if 4K videos are part of the plan, or if the same box will also handle backups, private cloud, Docker apps, downloads, and family storage.

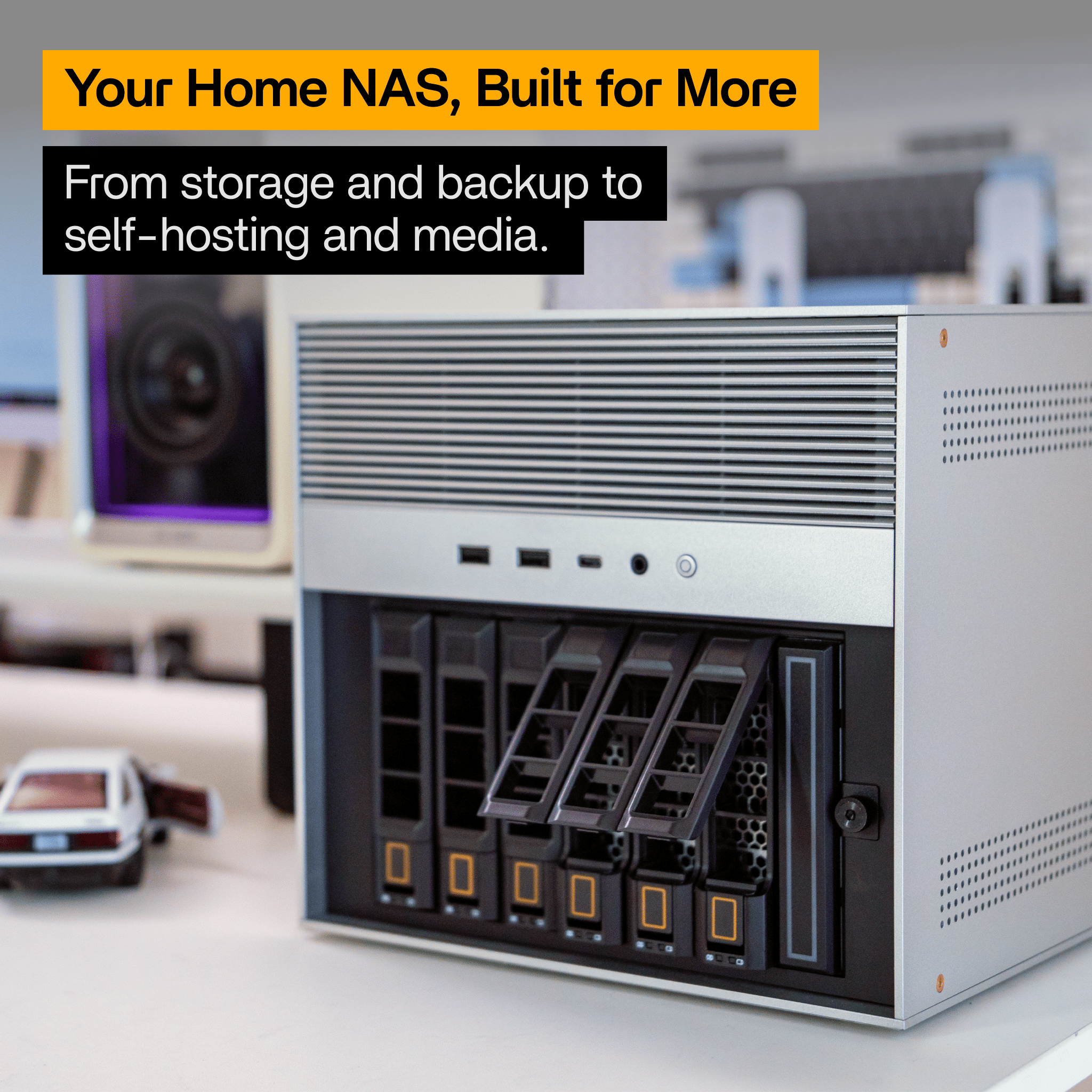

A ZimaCube 2 NAS is the better fit for larger media archives, multi-device storage, private cloud, Time Machine backups, and heavier home server workflows.

A Practical Decision Table

Final Takeaway

A 2-bay NAS is not wrong. It is the simple choice for a modest, stable media library, especially when you mainly need local streaming, light backups, and lower power use.

A 4-bay NAS is the safer long-term choice if your media library is growing, your NAS will also handle backups or apps, or you want more redundancy and expansion options without replacing the whole system later. For media storage, the best bay count is not the one that fits today’s files. It is the one that still makes sense after the library grows.

FAQ

Is a 2-bay NAS enough for Plex?

Yes, for a small or moderate library, especially with Direct Play. It becomes limiting when the library grows, when 4K files dominate, or when the NAS also handles backups and apps.

Is a 4-bay NAS faster than a 2-bay NAS?

Not always. More bays can help capacity and some storage layouts, but streaming speed also depends on network, CPU, client device, transcoding, and file type.

How much storage do I need for a media library?

It depends on file quality and growth. Music and 1080p media grow more slowly, while 4K movies, family videos, RAW photos, and backups can fill drives quickly.

Should I use RAID 1 or RAID 5 for media?

RAID 1 is common for 2-bay systems. RAID 5 or similar single-parity layouts are common in 3+ drive systems. Either way, RAID does not replace backup.

Is a 2-bay NAS good for family photos?

Yes, for a smaller photo library with a separate backup. For years of family photos, videos, scans, and backups, a 4-bay or larger NAS gives more room to grow.

Should I buy a 2-bay or 4-bay NAS for 4K movies?

A 4-bay NAS is usually the safer long-term choice for a growing 4K library, especially if you also want redundancy, backups, and multi-user access.
