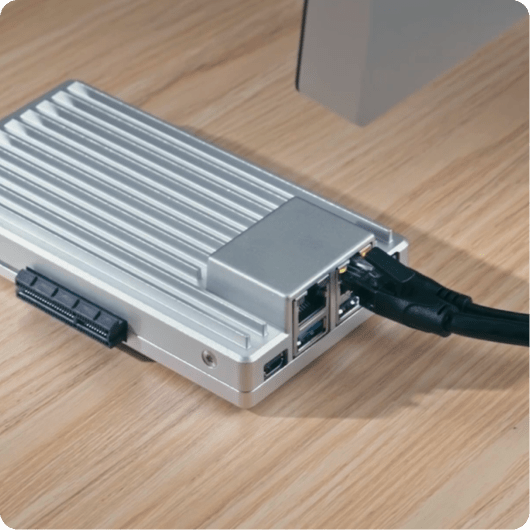

How to Build a Developer Homelab Around a Compact x86 Server or Used Workstation
Build around a compact x86 server for quiet always-on services; use a used workstation when memory, PCIe, GPU, or internal-storage expansion is a defined requirement.
The setup decision should follow the developer's recurring workload, room constraints, network path, data roles, and recovery plan. Hardware is the topology filter—not the architecture itself.
Map Services to Hardware Constraints
List Git, registries, databases, CI runners, preview apps, VMs, local AI, and test clusters. Record concurrent CPU, memory, storage, and accelerator needs rather than adding their maximum specifications blindly.
Compact x86 systems fit lightweight containers, infrastructure services, and a few VMs well. A workstation becomes useful when DIMM capacity, a full-height GPU, several NVMe devices, or multiple NICs changes the workflow.
If no workload can name the expansion slot it needs, do not buy a larger chassis for imagined flexibility.
Use Space, Noise, and Power as Topology Gates
Measure the actual shelf or desk depth, ventilation, outlet capacity, acceptable idle noise, and annual energy budget. A server that must be switched off because it is loud has failed the always-on role.
A compact N150 storage platform can show very low idle SoC power, while the full configured system still depends on drives, cooling, and workload. Measure at the wall after assembly.
Place a workstation outside the occupied room when GPU or multi-drive cooling raises fan speed. If that is impossible, the compact route may be the better system even with lower peak performance.
Assign Storage and Expansion Roles
| Requirement | Compact x86 server | Used workstation |
|---|---|---|
| Always-on services | Strong fit | Acceptable with higher idle cost |
| Large memory | Often limited | More DIMM capacity |
| Full-size GPU | Usually poor fit | Strong fit if PSU and cooling pass |
| Multiple internal disks | Model-dependent | More bays and controllers |
| Physical placement | Easy | Needs more space and airflow |
Use mirrored or backed-up local SSDs for service state, a separate capacity tier for large repositories or artifacts, and an independent backup destination. Do not let chassis choice collapse every role into one disk.
The home server OS guide is the next step for mapping those roles to a minimal Linux host, hypervisor, or NAS-oriented platform.
Validate Used Hardware and Compact Limitations
For a compact system, verify RAM ceiling, NVMe lane sharing, NIC chipset, thermal behavior, and whether adding storage blocks another required interface.
For a workstation, verify the exact PSU, GPU power connectors, PCIe slot wiring, drive caddies, firmware access, idle power, and fan behavior. A measured compact workstation review shows why power and acoustics should be checked on the configured system.
Run memory tests, SMART checks, sustained CPU load, network throughput, and a cold-boot recovery before moving persistent services.
Build the Recovery Path Before Expanding
Keep deployment definitions and host notes in version control. Back up databases, repositories, secrets, and application volumes to a destination that does not share the host's power and administrator boundary.
Test rebuilding one service on a blank disk. Then restore one database and reconnect from a developer client. This proves the topology rather than only the hardware.
Add a second compact node when maintenance isolation is the problem. Move to a workstation when a specific GPU, memory, or PCIe requirement is the constraint. Stop expanding either platform when one failure can remove live state and its only recovery copy.
Final Setup Rule
The setup passes when every service has a named role, protected state, controlled access path, tested restore, and a measurable trigger for splitting or expanding the topology.
