A mini PC can run CasaOS with several USB drives, but the safe buying decision depends less on processor speed than on the storage path around it. Choose a system with a separate internal boot drive, enough native USB bandwidth, reliable Ethernet, and a powered enclosure or hub that can keep every disk stable during simultaneous access. CasaOS can organize drives that Linux already recognizes, but it does not automatically turn a pile of USB disks into a protected storage array, so the hardware, power, pooling, and backup plan must be decided before checkout.

Start With the USB and Boot Layout, Not the CPU

CasaOS itself is light enough for many x86 mini PCs, so a faster processor does not fix a weak storage design. The first requirement is an internal SSD or eMMC device reserved for the operating system and app data. Booting CasaOS from one of the removable USB data drives makes recovery harder because an enclosure reset, cable problem, or accidental unplug can affect both the system and the files it serves.

Count physical ports, but also ask how they are connected. Two USB-A sockets can share one internal controller and therefore one bandwidth path. That may be acceptable for two hard drives serving media or backups, yet several SSDs copying at once can compete for the same link. The most useful buying check is to identify whether the mini PC offers more than one high-speed USB controller, a USB-C port with a known data mode, or an alternative storage path such as SATA, NVMe, or PCIe.

The ZimaSpace guide to turning an old mini PC into a personal cloud server provides the right baseline: the machine must be stable, bootable, networked, and able to support a clear storage plan before CasaOS apps are added. For readers comparing small form factors, the compact NAS server guide explains why a mini PC works best when storage is only one part of a broader container or automation workload.

A practical minimum for several USB drives is:

One internal SSD or eMMC boot device
At least one 5Gbps or faster USB storage path
Wired Gigabit Ethernet, with 2.5GbE useful for faster local transfers
Enough RAM for CasaOS plus the planned Docker apps
BIOS settings that restore power after an outage
A physical layout that keeps cables and drive power adapters from being disturbed

Do not buy a mini PC only because it advertises many USB ports. The storage path must remain stable after reboot, under sustained copy load, and when every enclosure is connected at the same time.

Choose Powered Storage and Enclosures That Expose the Drives Properly

Multiple hard drives should not depend on the limited power available from one computer port. A powered USB hub for high-draw peripherals uses its own AC adapter instead of dividing the mini PC port’s power among several devices. This matters most for bus-powered portable drives, but even externally powered desktop drives benefit from a clean data path and fewer stacked adapters.

A multi-bay enclosure is often easier to manage than several individual portable drives because it reduces the number of power bricks and cables. However, buyers must check how the enclosure presents disks to Linux. Some models expose every disk independently; others can combine drives behind their own RAID controller. A four-bay USB enclosure with independent and RAID modes illustrates why the enclosure mode changes what CasaOS and the underlying Linux system can see.

For individual USB-to-SATA bridges, look for UASP support and verify whether health information reaches the operating system. The UASP storage protocol can improve command handling and reduce storage overhead compared with older USB bulk-only transport, but the host, enclosure bridge, operating system, and drive must all support the path. UASP is a useful qualification signal, not proof that every SMART command, standby feature, or recovery tool will work through the enclosure.

Cable and power stability are purchase criteria because a brief disconnect looks like a drive removal to the server. Common external-drive disconnect symptoms can come from power management, weak cables, damaged ports, or an unstable enclosure. A CasaOS server should therefore be tested with all drives active, not only one disk at idle.

Before trusting the setup, copy a large folder to one drive while reading from another, reboot the mini PC, and confirm that every mount returns with the same path. If the enclosure changes disk identifiers or drops under load, replace it before building app storage or backups around it.

Decide Whether the Drives Stay Separate or Form a Storage Layer

CasaOS can display and use mounted drives, but several visible volumes are not automatically one protected pool. The ZimaSpace comparison of CasaOS and Unraid storage behavior explains the key boundary: CasaOS manages storage recognized by Linux, while parity and pooling depend on the configuration beneath the interface.

There are three sensible layouts:

Storage layout	Best fit	Main trade-off
Separate USB volumes	Media, downloads, app data, and backups can live on clearly assigned disks	Capacity is fragmented and each app needs stable mount paths
Pooled capacity with an underlying Linux layer	Users want one larger namespace across mismatched drives	More setup and recovery knowledge are required
Enclosure-managed RAID	The enclosure presents one logical device to CasaOS	Recovery can depend on the enclosure model and controller

Separate volumes are the easiest to understand. One drive can hold media, another backups, and a third replaceable downloads. This reduces the chance that a pooling mistake affects every disk, but it requires careful app mappings and enough free space on each volume.

A pooled design is useful when the goal is one large share, yet it should not be confused with redundancy. The ZimaSpace guide comparing CasaOS, ZimaOS, and Unraid for mixed-drive storage shows that pooling, parity, snapshots, and backups are separate decisions. If the data matters, keep an independent copy outside the USB pool and document how the storage layer would be rebuilt on another Linux machine.

Avoid spanning critical data across several cheap hubs and enclosures without a recovery plan. More disks increase capacity, but they also add bridges, cables, power supplies, and failure points. The correct candidate is the simplest layout that meets the household’s capacity and retention needs.

Match the Hardware Tier to the Number and Role of the Drives

A conventional mini PC with one internal SSD and two powered USB hard drives can be a good CasaOS starter system. It suits media, downloads, light backups, and a few Docker apps when each drive has a clear role. The mini PC homelab storage examples demonstrate how external USB disks can coexist with SATA and NVMe storage, while also showing why expansion choices should be planned as a whole system.

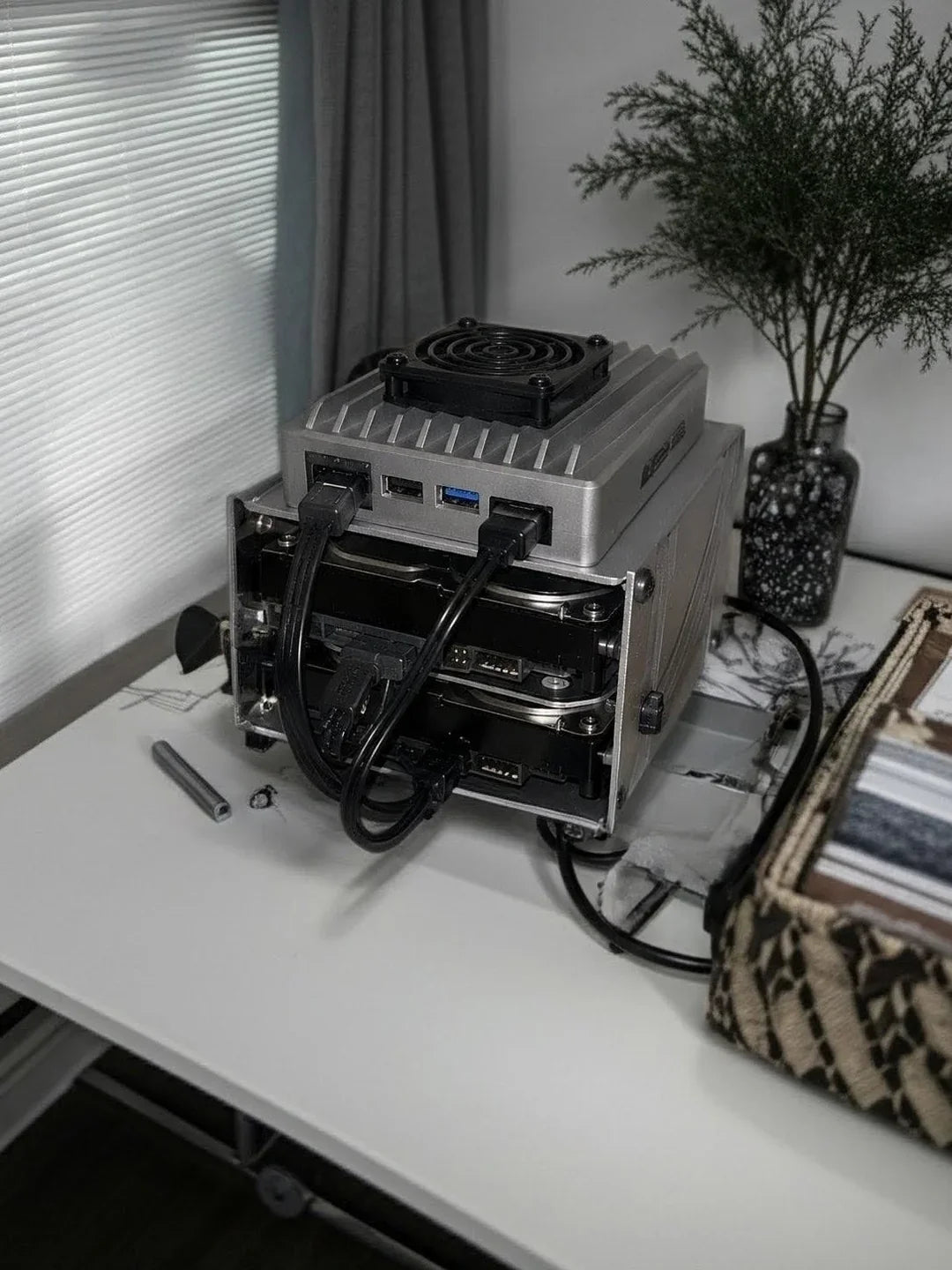

For buyers who want fewer USB dependencies, the ZimaBoard 2 Mini NAS Kit provides an Intel N150 platform, dual SATA connections, dual 2.5GbE, PCIe expansion, and a two-bay mounting path. The product page lists CasaOS among the compatible operating systems for the underlying ZimaBoard 2 platform. This tier is a better fit when two directly attached disks are enough and storage stability matters more than the enclosed appearance of a normal mini PC.

A larger integrated system becomes easier to justify when the plan already includes four or more hard drives, long-term family storage, or several always-on services. The ZimaCube 2 personal cloud NAS offers six HDD bays, SSD expansion, and several processor and networking tiers. It is not a USB-drive mini PC design; it is the candidate to consider when the USB cable tree has become the main weakness of the project.

Buyers still deciding between compact DIY hardware and an integrated multi-bay platform can compare the DIY NAS and media server collection. Use four filters: number of protected drives, acceptable cable complexity, required expansion, and who will recover the system if the original administrator is unavailable.

CasaOS Multi-USB Mini PC Checklist

Use this checklist before buying:

Reserve an internal drive for CasaOS, containers, and configuration data.
Count USB controllers and data speeds, not only visible sockets.
Prefer powered enclosures or a powered hub for multiple hard drives.
Confirm whether a multi-bay enclosure exposes separate disks or one RAID volume.
Check UASP, SMART visibility, stable disk identifiers, and Linux compatibility.
Test all drives simultaneously for copies, reboots, sleep behavior, and reconnects.
Decide whether volumes remain separate or use an underlying pooling layer.
Do not treat pooled capacity or enclosure RAID as a backup.
Keep at least one important-data copy outside the USB storage chain.
Leave enough ports and power headroom for replacement drives and future growth.
Choose native SATA or an integrated multi-bay platform when USB complexity exceeds the value of the mini PC.
Record mount paths and recovery steps before apps begin writing data.

Frequently Asked Questions

Can CasaOS Use Several USB Drives at the Same Time?

Yes, when Linux detects and mounts the drives reliably. CasaOS can expose those mounted locations to file sharing and applications, but it does not automatically add parity, redundancy, or one combined pool.

Is a USB Hub Safe for a CasaOS Storage Server?

A quality powered hub can work for lighter storage layouts, but direct ports or a multi-bay powered enclosure reduce cable and power complexity. Test the full configuration under simultaneous load before relying on it.

Should Important App Data Live on a USB Drive?

It can, but the enclosure, mount path, and backup must be stable. Keep CasaOS itself on an internal device, and maintain a separate copy of application databases and configuration data.

Final Takeaway

Choose a CasaOS mini PC by the complete storage chain, not the CPU badge. A simple system with an internal boot SSD and two well-powered USB drives can be practical, while four or more drives often justify native SATA, a purpose-built Mini NAS Kit, or an integrated multi-bay NAS. The right purchase is the one that keeps every disk visible after reboot, avoids shared-power failures, and can be recovered without depending on one fragile enclosure or cable tree.
