For most home NAS users, 2.5GbE is the right upgrade: it improves backups, shared files, and HDD-based storage without requiring every part of the network to be rebuilt. Choose 10GbE when large transfers, active projects, or several fast clients repeatedly make 2.5GbE the bottleneck.

The NAS port alone does not determine copy speed. Your effective throughput is limited by the slowest part of the path: the NAS storage pool, CPU, network port, switch, cabling, client adapter, client storage, and the workload happening at the same time.

The Short Answer: Choose the Slowest Speed That Does Not Delay Your Work

Choose 2.5GbE if the NAS mainly stores files, backups, photos, media, and an HDD-first archive. It is a substantial step up from 1GbE, and it is often enough when a single client is not regularly moving data from a fast SSD or large multi-drive pool.

Choose 10GbE if you regularly wait on large copies, edit or process files directly from shared storage, serve several fast clients, or have enough HDDs, SSDs, or NVMe storage to exceed a 2.5GbE link. The upgrade is valuable only when the rest of the path can keep up.

Your main workflow	Likely fit	Why
Phone and computer backups, shared folders, media playback	2.5GbE	Usually improves transfers without requiring a high-throughput storage pool.
One occasional large file copy	Usually 2.5GbE	Faster is nice, but a full 10GbE ecosystem may not pay back in time saved.
Frequent large project copies or several active users	Consider 10GbE	Repeated waiting time and shared contention can justify the wider link.
Fast SSD/NVMe storage or high-throughput editing workflow	10GbE	The storage may be capable of delivering more than a 2.5GbE path can carry.

Convert Network Labels Into Useful File-Transfer Expectations

Ethernet labels are measured in gigabits per second, while file-copy windows commonly show megabytes per second. At the raw link level, 2.5GbE equals 312.5MB/s and 10GbE equals 1,250MB/s before Ethernet, IP, SMB/NFS, encryption, filesystem, and storage overhead are considered.

Those numbers are ceilings, not a copy-speed guarantee. A 100GB file would take at least about 5 minutes 20 seconds over a raw 2.5GbE link and at least about 1 minute 20 seconds over a raw 10GbE link; real transfers take longer when any other stage is slower. The 10GbE NAS bottleneck white paper similarly separates theoretical byte rate from the CPU, I/O, storage, and encryption limits that affect actual transfer speed.

Link speed	Raw byte-rate ceiling	What to treat it as
2.5GbE	312.5MB/s	An upper network limit before overhead and system bottlenecks.
10GbE	1,250MB/s	An upper network limit that requires fast storage and clients to approach.

Find the Bottleneck Before You Upgrade the Network

Do not replace a 2.5GbE network with 10GbE until you know what currently limits the transfer. A faster NAS port cannot make a single slow HDD, a Wi-Fi client, a 2.5GbE switch port, or a busy client computer move data at 10GbE speed.

Check the storage pool first

A single HDD, a multi-HDD array, SATA SSDs, and NVMe drives have very different sustained and random-I/O behavior. A multi-drive HDD pool can exceed 2.5GbE in some workloads, while a single drive or a busy parity rebuild may not. Storage activity, filesystem overhead, encryption, and concurrent users all change the result.

Check the client and network path next

The client needs a matching 10GbE adapter, a path through a compatible switch or direct connection, and local storage fast enough to receive or send the data. The same rule applies to 2.5GbE: one slow segment sets the practical ceiling. When the numbers look good but copies still disappoint, a faster port cannot remove a storage, client, or protocol bottleneck.

The 10GigE technology guide also describes this slowest-component rule across the adapter, switch, cable, and endpoint. Its examples are machine-vision systems, but the end-to-end principle applies to NAS transfers as well: the network can only move as fast as its slowest component.

When 2.5GbE Is the Better Buy

2.5GbE is a strong fit for a home NAS that handles computer backups, family photos, shared folders, media files, and occasional large transfers. It gives a meaningful improvement over 1GbE without assuming that every device in the home needs a 10GbE port.

It is especially sensible for storage-first systems built around HDD capacity. The network may no longer be the first constraint for a single drive or a modest pool, leaving more budget for drives, backups, or an SSD volume where low latency actually changes the experience.

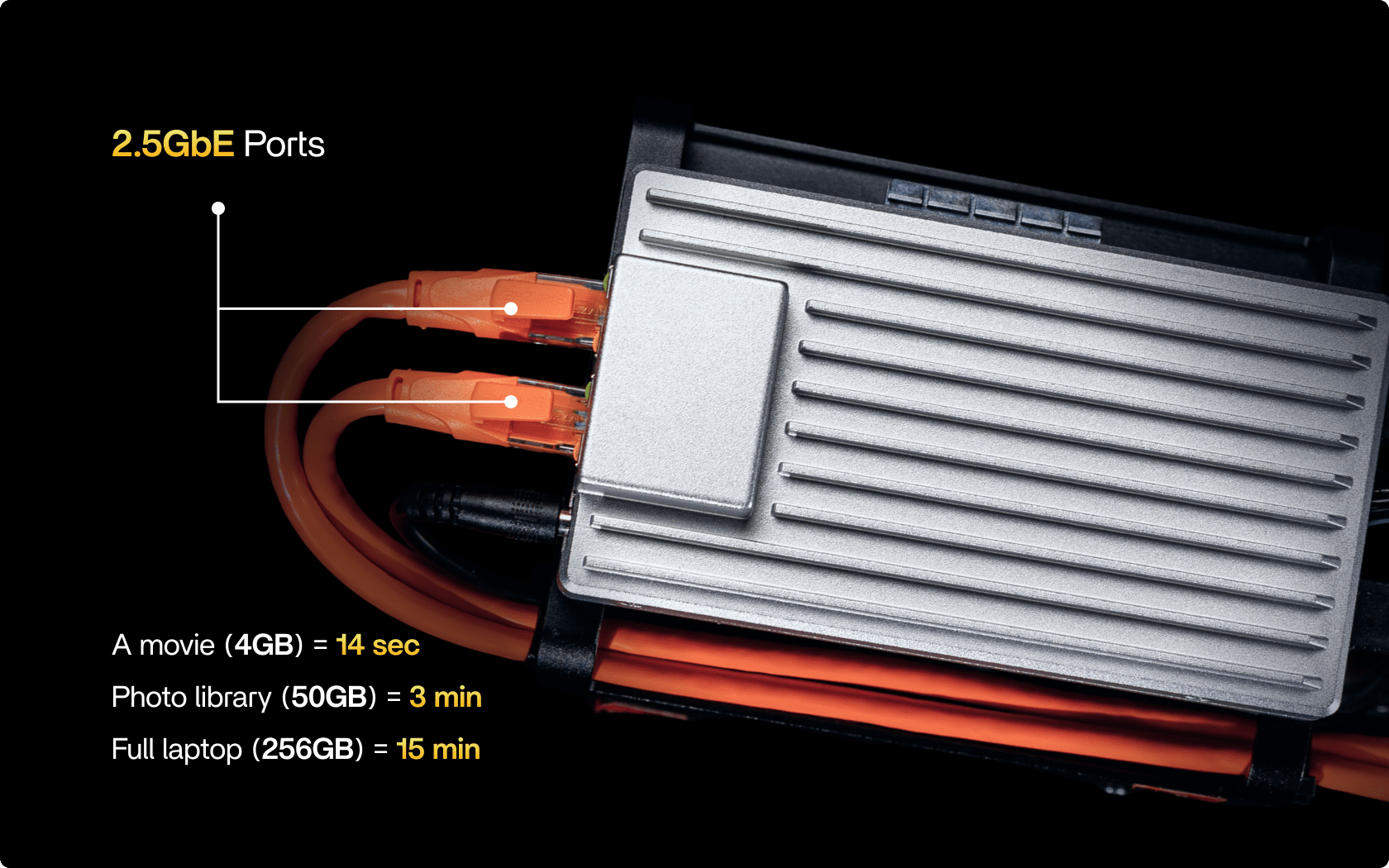

For a modular home-server build, ZimaBoard 2 provides dual 2.5GbE, dual SATA, PCIe expansion, and USB 10Gbps. In ZimaSpace internal testing, one 2.5GbE port reached about 2.35Gbit/s in iperf3. That is a network link test, not a promise of the same file-copy speed from every drive configuration.

When 10GbE Changes the Workflow

10GbE becomes useful when the same large-file wait happens repeatedly: moving camera footage, syncing active projects, copying virtual-machine images, ingesting large datasets, or feeding several fast clients from the same NAS. The value comes from reducing routine transfer friction, not from a higher number on the specification sheet.

It also helps when the NAS storage is intentionally built to deliver higher throughput, such as a capable multi-HDD pool, an SSD volume, or NVMe-backed active data. If the storage cannot sustain more than a 2.5GbE transfer, the upgrade may improve multi-client headroom without making one file copy dramatically faster.

For a solo editor using one workstation, direct-attached storage may still be the simpler answer. A faster NAS is most compelling when shared access, centralized protection, or multiple clients are part of the workflow; direct-attached storage can still be the simpler path for one editing workstation.

Local AI can also create a 10GbE case when models, datasets, embeddings, or shared project files move repeatedly between a compute device and the NAS. The goal is not to make the NAS the compute engine, but to avoid turning shared data movement into the slowest part of the workflow. See how to move larger model assets and shared AI data without making the NAS the compute bottleneck.

What a Real 10GbE Upgrade Requires

A complete 10GbE upgrade includes more than the NAS: a compatible client adapter, an appropriate switch or direct connection, cabling that fits the run length and hardware, and storage capable of using the link. Upgrade the one component that is proven to be limiting before replacing the rest.

Plan the physical path

For copper 10GbE, cable category and distance matter. The supplied 10GigE guide states that Cat6/Cat6e runs are specified there up to 55m, while Cat6A/Cat7 are stated up to 100m; actual deployment should still follow the requirements of your equipment, cable vendor, installation, and environment. Do not assume every existing cable run will behave identically at 10GbE.

Test before buying more hardware

Run a network test between the NAS and the client, then copy a representative file from the actual storage pool to the actual client drive. If iperf is fast but file copies are slow, investigate storage, CPU, encryption, protocol settings, or client disk performance before buying a faster switch.

Jumbo frames can be a valid tuning choice in a fully controlled network, but they are not the first fix for a slow path. Establish a stable standard-MTU baseline first, then change one variable at a time and retest.

Which ZimaSpace Path Fits Your Workflow?

Choose a dual-2.5GbE platform when the goal is an efficient home NAS, a compact private cloud, or a modular system where storage capacity and everyday responsiveness matter more than maximum sequential transfer speed. It is the better match when your clients, switches, and drives are still in the multi-gigabit range.

Choose a 10GbE-capable multi-drive system when testing shows that 2.5GbE is regularly limiting active work and you are prepared to match the rest of the path. A 10GbE port is then an enabling feature for a wider storage and client design—not a standalone performance guarantee.

Workflow priority	Better path	What to verify first
Home backups, media, personal cloud, and shared files	Dual 2.5GbE	Drive capacity, backup plan, client 2.5GbE support.
Modular build with future network expansion	2.5GbE now with PCIe expansion options	Whether the future workload, switch, and client will justify 10GbE.
Frequent high-throughput shared work	10GbE-capable NAS path	Storage-pool throughput, client NICs, switch, and cabling.

Once the workflow points to a higher-throughput ZimaCube configuration, review how the ZimaCube network and expansion hardware is arranged before treating any one port as the whole performance story.

FAQ

Is 2.5GbE enough for a home NAS?

Usually, yes. It is well suited to backups, shared files, media libraries, family photos, and many HDD-based NAS setups. Upgrade only when your measured workflow shows that 2.5GbE is repeatedly delaying work.

Can HDDs benefit from 10GbE?

They can. A multi-drive HDD pool or several simultaneous clients may use more than 2.5GbE, but a single HDD often will not. Measure the pool under the workload you actually run.

Do I need 10GbE for video editing or local AI?

Not automatically. 10GbE is useful when active project files or AI data move repeatedly across the network and the storage and client can keep up. For one workstation, local SSD or DAS storage may be simpler; for shared storage, 10GbE can be more valuable.
