7 Clever Design Details in the ZimaCube

Whether a piece of hardware is thoughtfully designed is not something you find in the spec sheet. You find it in the details.

The ZimaCube has many design choices that are easy to miss, but once pointed out, immediately make sense. This article brings them together. It is not a review, but more like a slow, close observation.

Seven Clever Details

1. Copper-Colored Screws: The First Screw Already Has a Story

One of the first steps in opening the ZimaCube is removing several internal bracket screws. They are copper-colored.

There is no functional need to use copper-colored screws inside a NAS. Regular zinc-plated screws would work just as well and cost less. Choosing copper is an aesthetic decision. In a device built mostly around a restrained silver-and-black color palette, that small warm-toned accent tells you: someone thought about this.

You may never see those screws again after the first teardown. But the design team knew you would see them once — the first time you opened the machine.

2. Magnetic Front Panel: No More Fear of Snapping Plastic Clips

The front panel does not use a single plastic clip. The entire panel is held in place by magnets, and you can remove it by gently pulling outward from the bottom with your fingers.

Anyone who has taken apart electronics knows the pain of plastic clips. You never know whether you are “not pulling hard enough” or “about to break it.” The magnetic design removes that anxiety completely.

It is not just convenient for users, either. Plastic clips are wear parts, and after repeated removal, loosening is only a matter of time. Magnets do not suffer from that kind of mechanical fatigue. The panel feels the same whether you remove it once or a hundred times.

3. Interchangeable Side Panels: Symmetry Down to the Frame

The left and right side panels of the ZimaCube are completely identical.

That is not an accident. To make this possible, the chassis frame has to be designed as a mirrored, symmetrical structure. The rail spacing, locking points, and curvature on both sides all need to match.

The result is simple: after removing the panels for cleaning, you do not need to figure out which one goes on which side. Pick up either panel, and it fits.

The factory benefits too. Only one side-panel mold is needed, which improves production efficiency and consistency in quality control.

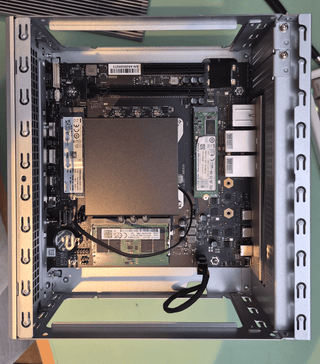

4. Memory and PCIe Slots Within Easy Reach: No Real “Disassembly” Required

Here is the full process for replacing memory or adding a PCIe card on the ZimaCube:

Remove the front panel, which is magnetic and takes about 3 seconds. Slide off the side panel, which takes another 5 seconds. The memory and PCIe slots are right in front of you.

There is no need to remove the drive cage, unplug cables, or move any other components.

On many compact NAS systems, replacing memory requires removing the drive cage or even the power module first. The ZimaCube’s internal layout is clearly intentional: the components users are most likely to upgrade are placed exactly where they are easiest to access.

5. Internal USB 2.0 Header: Quietly Waiting to Be Discovered

There is a standard 9-pin internal USB 2.0 header on the motherboard, the same kind used for front-panel USB ports in desktop PCs.

This is an interface that does not need to exist. Without it, the ZimaCube would still be the ZimaCube. But once it is there, many new possibilities appear:

• Install a tiny internal USB drive as an Unraid boot drive
• Keep a recovery USB drive connected permanently
• Connect a Zigbee or Z-Wave dongle, which Home Assistant users will appreciate
• Add a Bluetooth adapter without occupying an external USB port

Finding room for an internal USB header on a compact NAS motherboard suggests that the PCB layout was not just about fitting the essentials. It was also about asking, “What else could we add?”

6. PCIe ×16 Physical Slot + ×4 Electrical Connection: Leaving the Door Open

Slot 1 has a physical ×16 full-length connector, but it is electrically PCIe Gen 4 ×4.

The reason is practical. Most low-profile GPUs use a physical ×16 connector. If the physical slot were only ×4 or ×8, many cards simply would not fit. But wiring the slot for a full ×16 electrical connection would increase cost and power requirements. For most NAS expansion scenarios — NICs, HBA cards, and low-profile GPUs — ×4 bandwidth is already enough.

This design choice reflects a clear idea: do not let the physical slot be the thing that limits what users can try.

7. Dual Thunderbolt 4: A Forward-Looking Feature Rare in This Category

Seeing Thunderbolt 4 on a NAS is already a statement.

With up to 40Gbps of bandwidth, Thunderbolt 4 allows you to use the ZimaCube almost like local storage. Connect a Mac or PC with a single Thunderbolt cable, and you can edit 4K or 8K footage directly from the NAS without relying on proxy files.

Thunderbolt 4 also supports daisy-chaining, a certain level of USB Power Delivery, and DisplayPort signal transmission.

Having two ports means you can connect two devices at the same time, or one device plus a dock.

Viewed within the 2026 NAS market, this is not just “keeping up with the specs.” It is taking an extra step forward.

Two Unsolved Mysteries

Some details reveal what the designers were thinking. Others feel like unfinished clues. You can see the traces, but the ending has not been written yet.

Mystery 1: Four Mysterious Standoffs

On one side of the chassis, there are four evenly spaced standoffs. They are clearly placed there intentionally: the spacing is regular, the position is symmetrical, and they do not interfere with other internal structures.

But at the moment, they do not correspond to any installed component. There is no bracket, no cover plate, and no official documentation explaining them.

Community guesses include:

• Reserved mounting points for a larger fan?
• Compatibility points for a second drive cage configuration?
• Leftovers from an earlier design, later replaced by another function?

Whatever the answer is, their presence proves one thing: the ZimaCube’s internal frame was designed with more possibilities in mind than the current configuration shows.

Mystery 2: The USB-C Port on the NVMe Expansion Board

There is a USB-C port on the back of the NVMe daughterboard. Its purpose has not yet been explained in official documentation.

Possible uses include:

• External direct-attached storage expansion, similar to DAS functionality
• Debugging or maintenance
• Reserved hardware capability for future firmware features
• A data channel for connecting other internal modules

This is perhaps the most deliberately unclear design inside the ZimaCube. You see a port. You know it must have a purpose. But you do not know what that purpose is.

That partially hidden feeling is, in a way, part of the fun.

The Sum of the Details

Individually, none of these details is enough to define a device.

• Copper-colored screws may not matter to you.
• A magnetic front panel may only be removed once a year.
• Interchangeable side panels may go unnoticed.
• The internal USB header may never be used.

But together, they send a clear signal: the design team cares about what happens after you open the machine.

They knew someone would open the ZimaCube, whether that person was a repair technician or the user. And in nearly every corner your eyes might pass over, they did something. Not necessarily to create a marketing bullet point, but simply because they did not want to be lazy with the details.

In an era when more and more consumer electronics are sealed shut, difficult to repair, and unfriendly to exploration, that attitude itself is a rare position to take.
