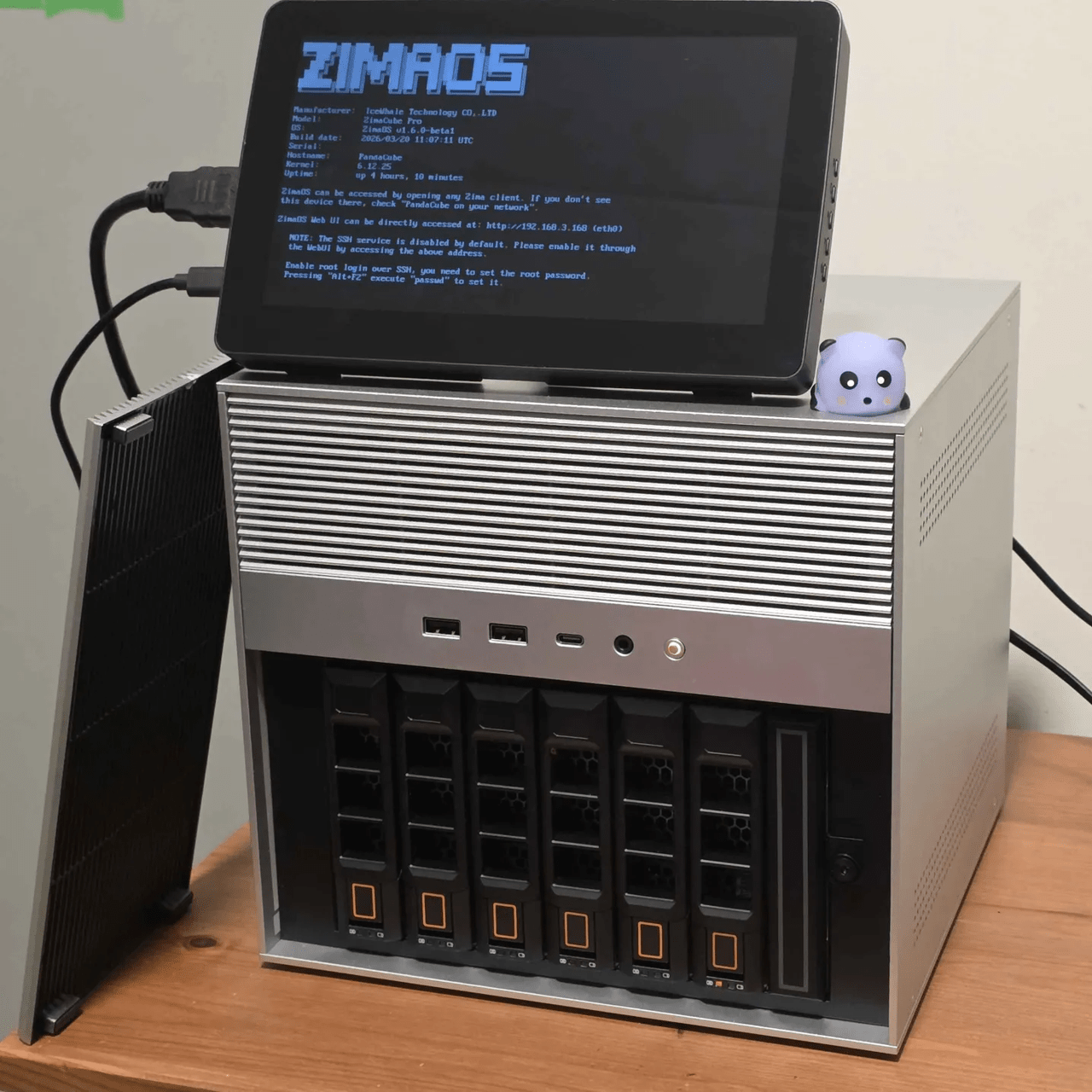

Why Does Sensor Placement Matter in Home Server Cooling?

Sensor placement matters because each temperature probe measures its local airflow and surfaces rather than the home server’s entire cooling condition.

A probe near the front intake may report cool room air while drives behind a restrictive cage run hot, and a sensor beside the rear exhaust may look alarming even though components receive safe inlet air. CPU package sensors respond quickly to silicon power, while motherboard and external probes reveal slower case-air and hotspot behavior. The sections below explain what inlet, exhaust, height, surface contact, and component-adjacent placements actually measure so fan curves and alerts are based on the intended thermal question.

One Sensor Represents One Local Thermal Zone

Air inside a server does not have one uniform temperature. Components add heat along the flow path, obstructions create low-velocity pockets, and recirculation can return warm exhaust toward an intake.

Rack-monitoring guidance recommends multiple sensor locations because top, middle, and bottom readings expose gradients that one room or rack average hides. The same principle applies inside a compact home server at a smaller scale.

A probe mounted in a cool unused corner can remain stable while the drive cage, VRM, or accelerator receives hotter and slower-moving air.

Inlet and Exhaust Sensors Answer Different Questions

An inlet sensor describes the air available to cool downstream components. An exhaust sensor describes the air after it has absorbed heat and can reveal how much heat the chassis is rejecting.

Cooling guidance places probes near intake and exhaust because the two readings should not be interpreted as interchangeable ambient temperature. Their difference changes with workload, fan speed, airflow volume, and recirculation.

A high exhaust temperature with safe component and inlet values can indicate effective heat removal, while a rising inlet temperature may show that hot air is returning to the server or the room itself is warming.

Fan control should use the signal that corresponds to the protected component, not whichever probe reports the highest number.

Drive Cages Create Vertical and Front-to-Back Gradients

Several HDDs form both heat sources and airflow restrictions. The first drive may receive cool intake air while later drives receive air warmed by upstream disks.

Sensor-placement practices use top-middle-bottom monitoring to reveal stratification and incomplete airflow. In a tower or desktop NAS, placing probes before and after a dense drive cage can expose the same hidden rise.

SMART drive temperatures provide direct device readings, but a nearby air probe can show whether several drives share an increasingly hot inlet before any one drive reaches its alert threshold.

Featured

ZimaCube 2 Personal Cloud Home NAS

ZimaCube2

$799.00 - $2,499.00

Buy Now

Nearby Surfaces Can Bias an Air-Temperature Probe

A probe taped to a heatsink, cable, chassis panel, or drive bracket measures a mixture of conducted surface heat and surrounding air. Radiant heat from a GPU or VRM can also raise it without representing the main airflow.

Desktop airflow guidance treats intake air sensing as distinct from component temperature. Secure a free-air probe in the intended stream without allowing it to touch a hot surface or sit directly in the blast from one fan.

Probe mass and enclosure also affect response time. A heavily insulated or metal-clamped sensor can lag behind rapid airflow changes and produce a smoother but less representative signal.

Fast Silicon Sensors and Slow Air Sensors Serve Different Controls

CPU and GPU junction sensors change quickly with workload and protect the silicon from immediate overheating. Case-air, coolant, drive-cage, and motherboard probes respond more slowly and represent accumulated heat.

Puget Systems found that different case and cooler layouts changed component temperature patterns rather than producing one universal case temperature. A fan curve based only on CPU spikes can surge noisily, while one based only on slow case air may react too late to a local CPU burst.

Use the fast internal sensor for component protection and a slower representative air or coolant sensor for chassis fan stability when the hardware supports both.

Drives and VRMs may still need their own minimum fan floor because their heat can rise while CPU load remains low.

Validate Placement by Mapping the Server Under Load

Log room temperature, inlet, exhaust, drive temperatures, motherboard or VRM sensors, CPU package, fan speed, and workload throughput during idle and a sustained representative load. Move one external probe at a time.

ZimaSpace’s thermal readiness test treats throttling, fan escalation, drive temperature, and application stability as one system result. A sensor location is useful only when its trend predicts the component or cooling failure the alert is meant to prevent.

Repeat the map with normal panels, filters, cables, and drive population installed. Open-case or empty-bay measurements describe a different airflow network.

Document each probe’s purpose in the monitoring dashboard: room reference, server inlet, post-drive air, exhaust, or local hotspot. Avoid naming every external sensor simply “system temperature.”

FAQ

Should the hottest sensor control every fan?

No. A hot exhaust probe may not represent inlet risk, and a brief CPU spike may not require every drive fan to surge. Match each control to the component and airflow path it protects.

Is CPU temperature enough for a home NAS?

No. HDDs, NVMe drives, VRMs, memory, and internal air can warm under workloads that do not create the highest CPU package temperature.

Where should a single external probe go?

Place it where it answers the most important missing question—often the air entering a restricted drive cage or the warmest downstream zone—and label that purpose clearly.
