Why Is Separating Lightroom Catalogs, RAW Files, and Backups Essential in a Photography Setup?

Separating Lightroom catalogs, RAW originals, and backups is essential because they have different performance, growth, and recovery requirements.

The catalog contains editing and organizational state, the RAW library contains the irreplaceable captures, and the backup system exists to recover both when working storage fails. Combining those roles into one device or one vague folder makes migrations harder and hides what a backup actually protects. A strong setup gives every layer a stable path, an explicit lifecycle, and its own restore test.

A Lightroom Catalog Is Application State, Not the Photo Library

The Lightroom Classic catalog stores edits, ratings, keywords, collections, history, and references to image files. The RAW originals remain separate files. Treating both as one undifferentiated folder hides two different recovery problems: losing the photos and losing the work that describes how those photos should appear.

Need to Know IT’s Lightroom-on-NAS guide explicitly separates the catalog from original images and recommends protecting both independently. That catalog-versus-originals distinction is the foundation for a recoverable photo setup.

Document the catalog path, preview path, original-image root, export paths, and catalog-backup location. A photographer should be able to explain which component is lost in each failure scenario.

Keep the Catalog on a Fast Local Path

The catalog is a database that Lightroom reads and writes continuously. It benefits from predictable low latency and should remain on a supported local path. The original image files can live elsewhere because Lightroom references them through their paths rather than embedding the entire RAW library in the catalog.

Photography Life’s Lightroom workflow guidance treats catalog performance and image storage as separate concerns. That separate catalog-and-image workflow supports making local catalog placement an intentional architecture choice.

Put the active catalog and its previews on internal SSD or NVMe. Keep enough free space for preview growth and maintenance. Do not confuse a fast catalog path with a backup plan; the catalog still needs copies elsewhere.

RAW Originals Need Stable Paths More Than Catalog-Level Speed

Original files are read during preview generation, high-magnification editing, export, and file operations, but they usually do not require the same small-random-I/O behavior as the catalog database. Their more important requirements are stable location, enough capacity, clear ownership, and independent protection.

X-Equals recommends shoot-based folders and durable filenames so a photo archive remains understandable outside the catalog application. That catalog-independent folder structure reduces the risk that a catalog problem turns the RAW archive into an unintelligible directory tree.

Use a consistent root for originals and avoid casual moves in the operating-system file browser after Lightroom has indexed them. When the archive migrates to new storage, preserve or deliberately remap the folder structure.

Featured

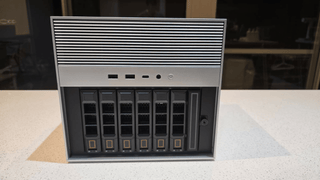

ZimaCube 2 Personal Cloud Home NAS

ZimaCube2

$799.00 - $2,499.00

Buy Now

Catalog Backups Do Not Back Up the RAW Files

A catalog backup protects application state, not the original photographs. A photographer can restore every rating and edit instruction while still missing the RAW files those records reference. Conversely, a perfect RAW backup can preserve images but lose collections, flags, edits, and organization if the catalog disappears.

Digital Photography School recommends maintaining multiple copies of photography files and separating working data from recovery copies. That separate-copy backup discipline supports protecting the catalog and originals as different backup sets.

Write two restore procedures: restore the catalog and restore the image library. Then test them together so the recovered catalog resolves the recovered originals without hours of manual path repair.

Smart Previews Create Flexibility but Are Not Originals

Smart Previews can make a disconnected editing workflow practical because they are smaller representations linked to the catalog. They are useful for travel or remote work, but they should not become the only remaining version of a client image. The full-resolution original remains the authoritative capture.

Well Adjusted Photo’s remote Lightroom workflow shows how Smart Previews and a catalog can be packaged for editing away from the original RAW library. That proxy-style remote editing workflow demonstrates the value of separating edit state from high-resolution source media.

Build Smart Previews where mobility is useful, then reconnect the catalog to originals before final export or archive changes. Back up the catalog and original images; treat Smart Previews as a convenience layer unless the workflow explicitly requires preserving them.

Keep Backups Outside the Same Storage Failure Boundary

Placing the catalog on one SSD and RAWs on a NAS improves role separation but does not complete backup. Both may still be in the same room, on the same account, or reachable by the same malware. A recovery copy must survive the failure that destroys or corrupts the working storage.

TechTarget’s 3-2-1 explanation separates the primary data from additional media and an off-site copy. That independent-copy requirement applies to both catalog state and image originals.

Include catalog backups in the off-site set along with current or irreplaceable RAWs. Keep recovery keys and the Lightroom version or migration notes needed to interpret older catalogs.

Test the Setup by Rebuilding a Job From Its Three Layers

The separation is useful only if the photographer can reconstruct a job. Restore a catalog backup, restore one job folder to a different location, reconnect the catalog, and confirm ratings, edits, keywords, and exports. The test should also prove that an older catalog version can be opened or migrated safely.

Fstoppers’ creative-backup workflow emphasizes that a storage design should protect work throughout the editing lifecycle, not just at the final archive stage. That workflow-wide recovery mindset is the right standard for validating catalog, RAW, and backup separation together.

The ZimaSpace Lightroom and NAS storage workflow provides the broader topology context. A ZimaBoard 2 Mini Home Server fits a compact compute-first photo workflow with deliberate attached storage. A ZimaCube 2 AI NAS is the clearer base when multi-drive capacity, long retention, concurrent access, and storage-first recovery define the photography archive. Separation is successful when losing one layer does not make the photographer guess what the other layers contain or how to restore them.

The most useful maintenance habit is to audit all three layers together after a major Lightroom upgrade, workstation replacement, archive migration, or catalog cleanup. Open the active catalog, confirm the expected originals resolve from their documented root, verify that recent catalog backups exist on another device, and restore one small job to an alternate path. Then compare ratings, develop settings, collections, filenames, and final exports against the working copy. This catches a class of failures that normal editing can hide, such as a catalog backup that points to an old archive root or an image backup that excludes sidecars and derivative files required by the studio. Keep a short text note beside the recovery documentation that records the current catalog version, archive root, catalog-backup location, off-site destination, and last successful rebuild. That note turns separation into an operating system rather than a diagram. Review it after every major library move so the next restore starts from current paths instead of an obsolete mental map during recovery.
